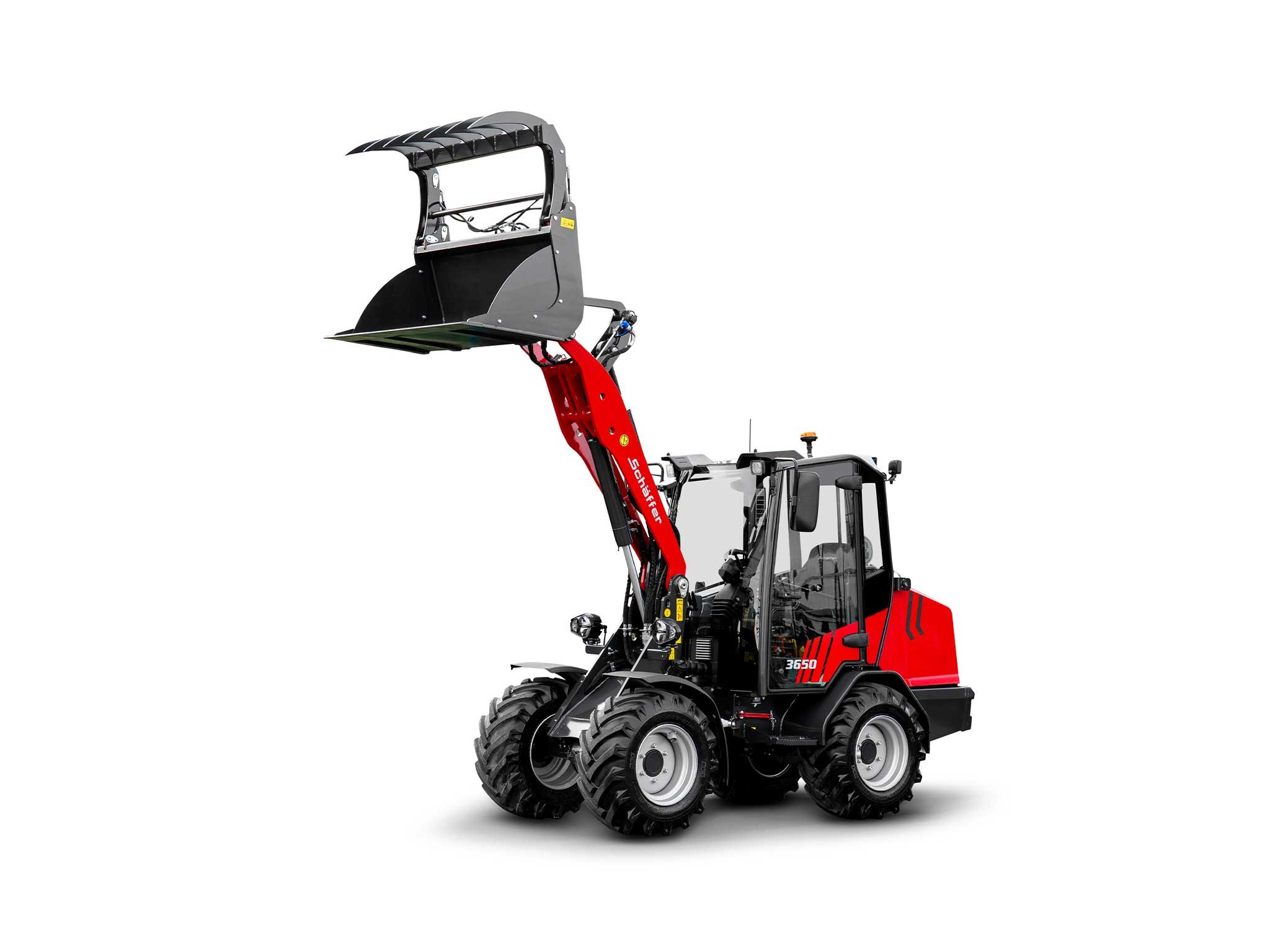

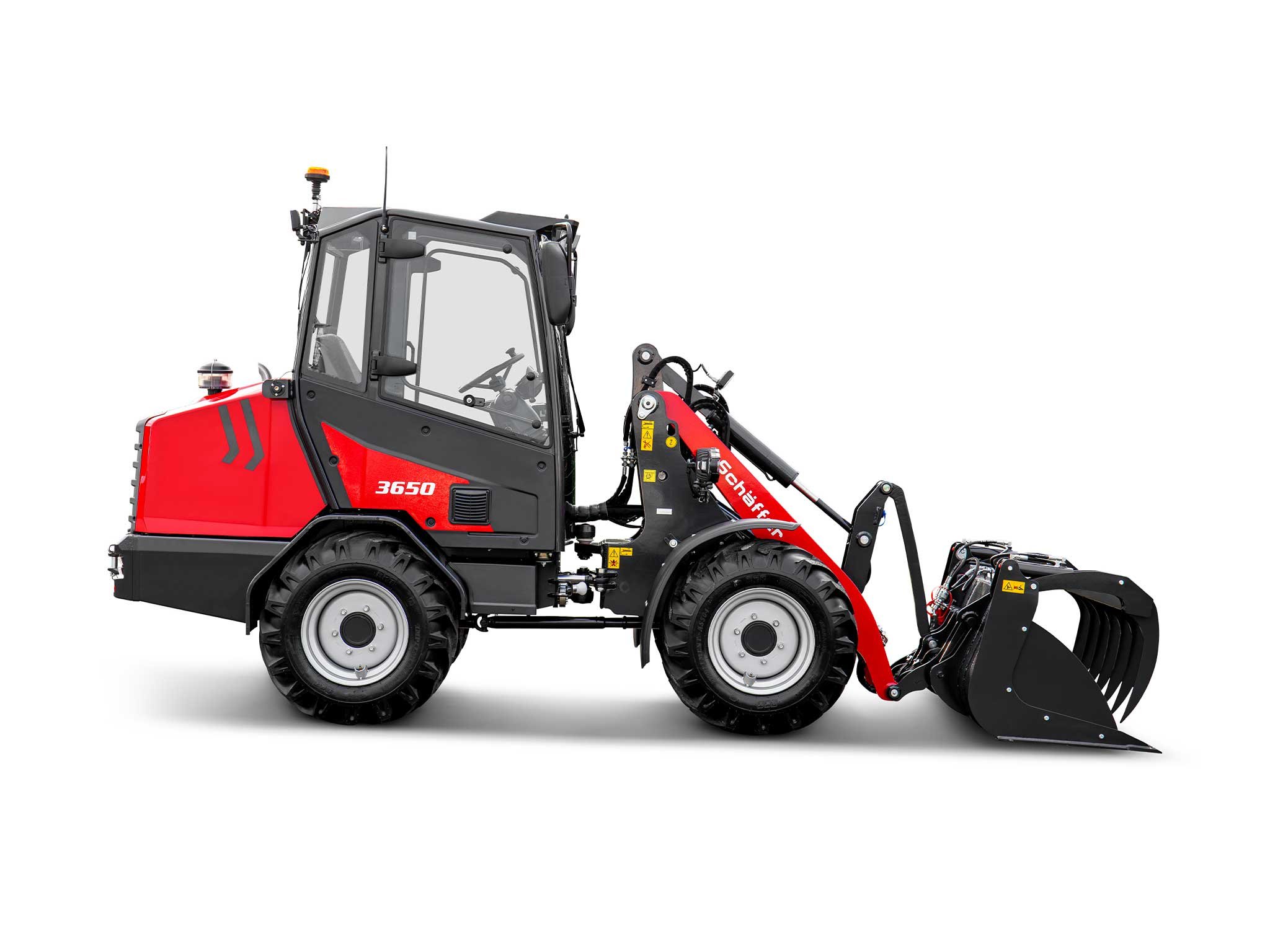

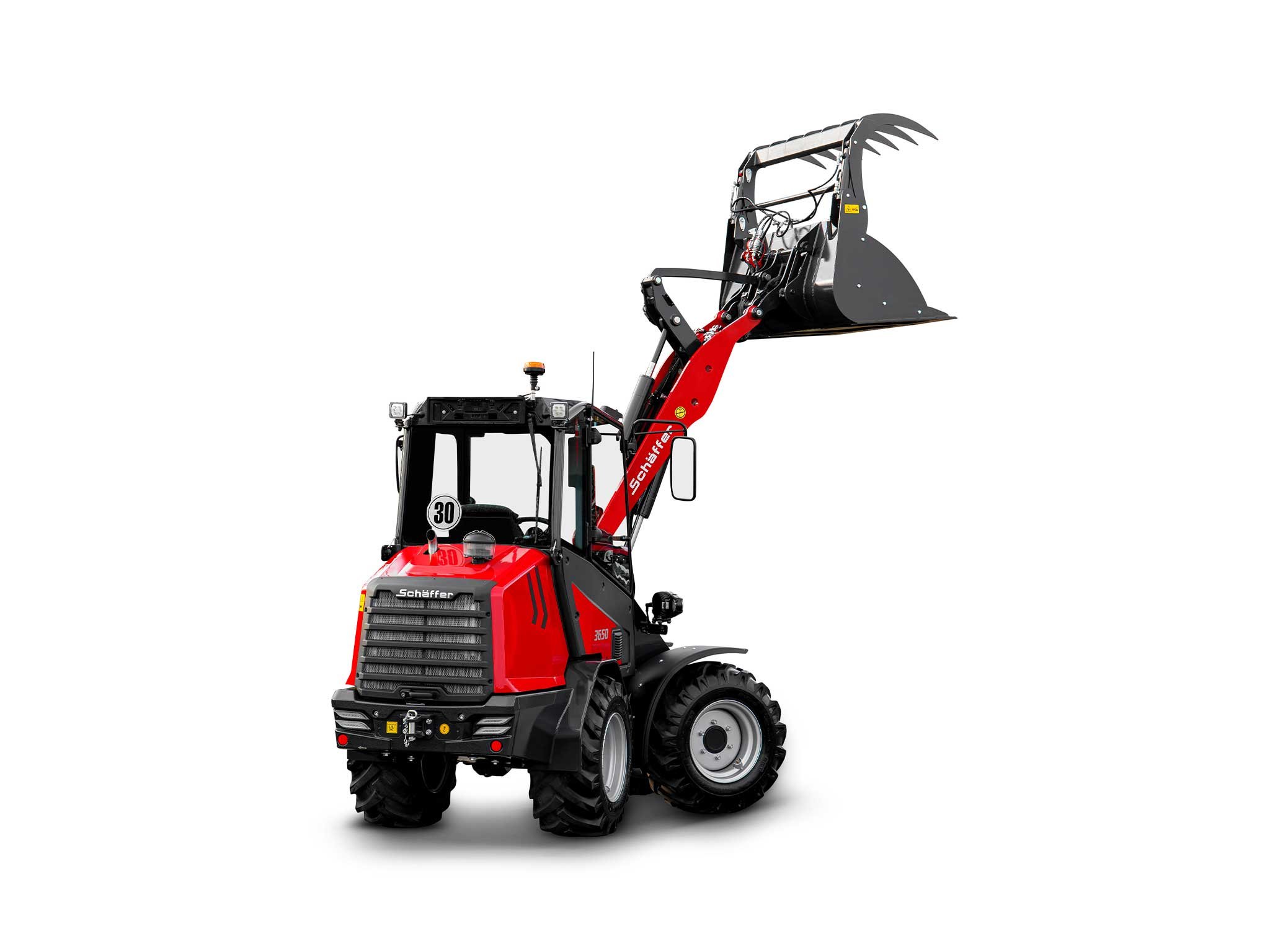

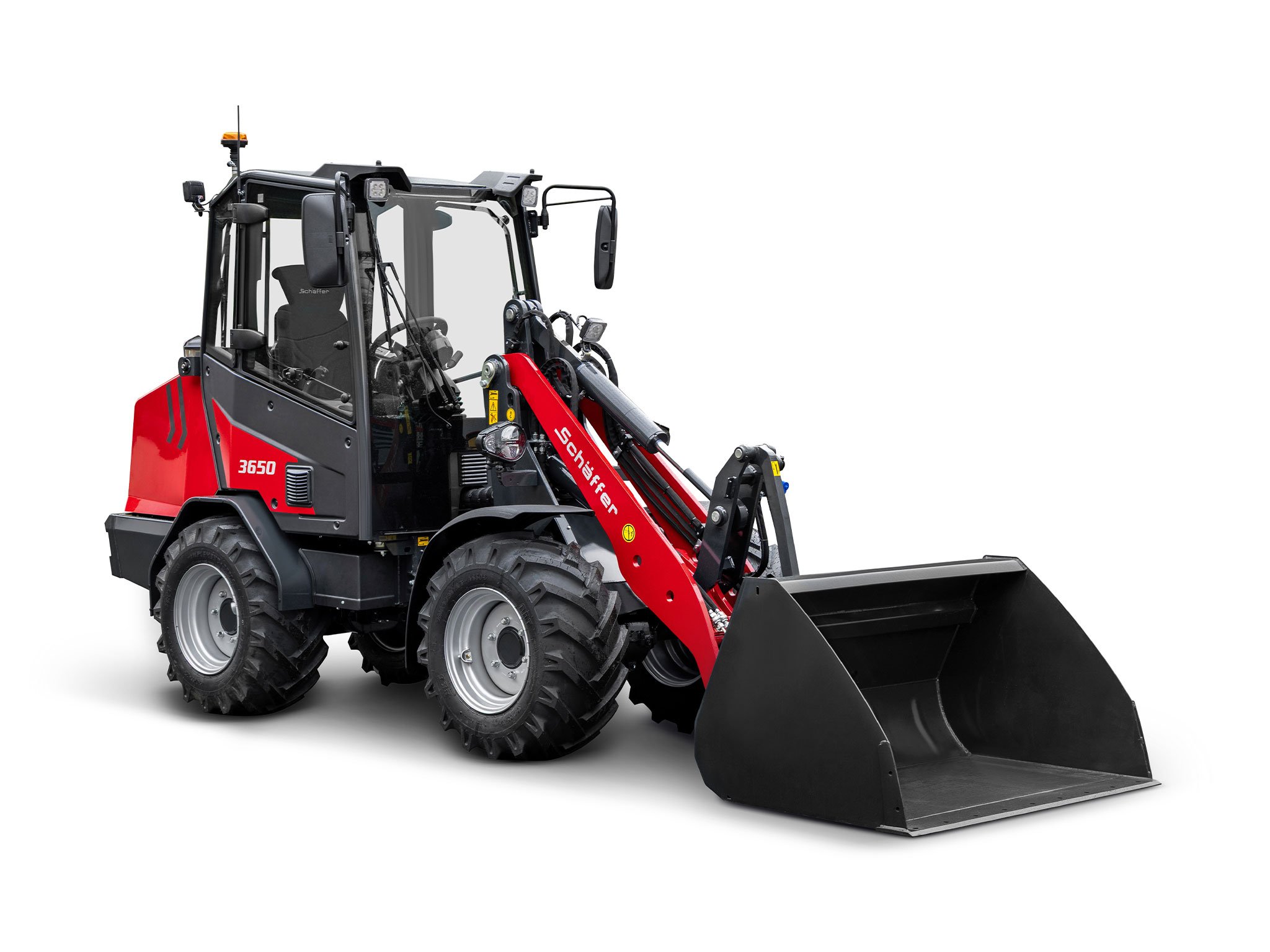

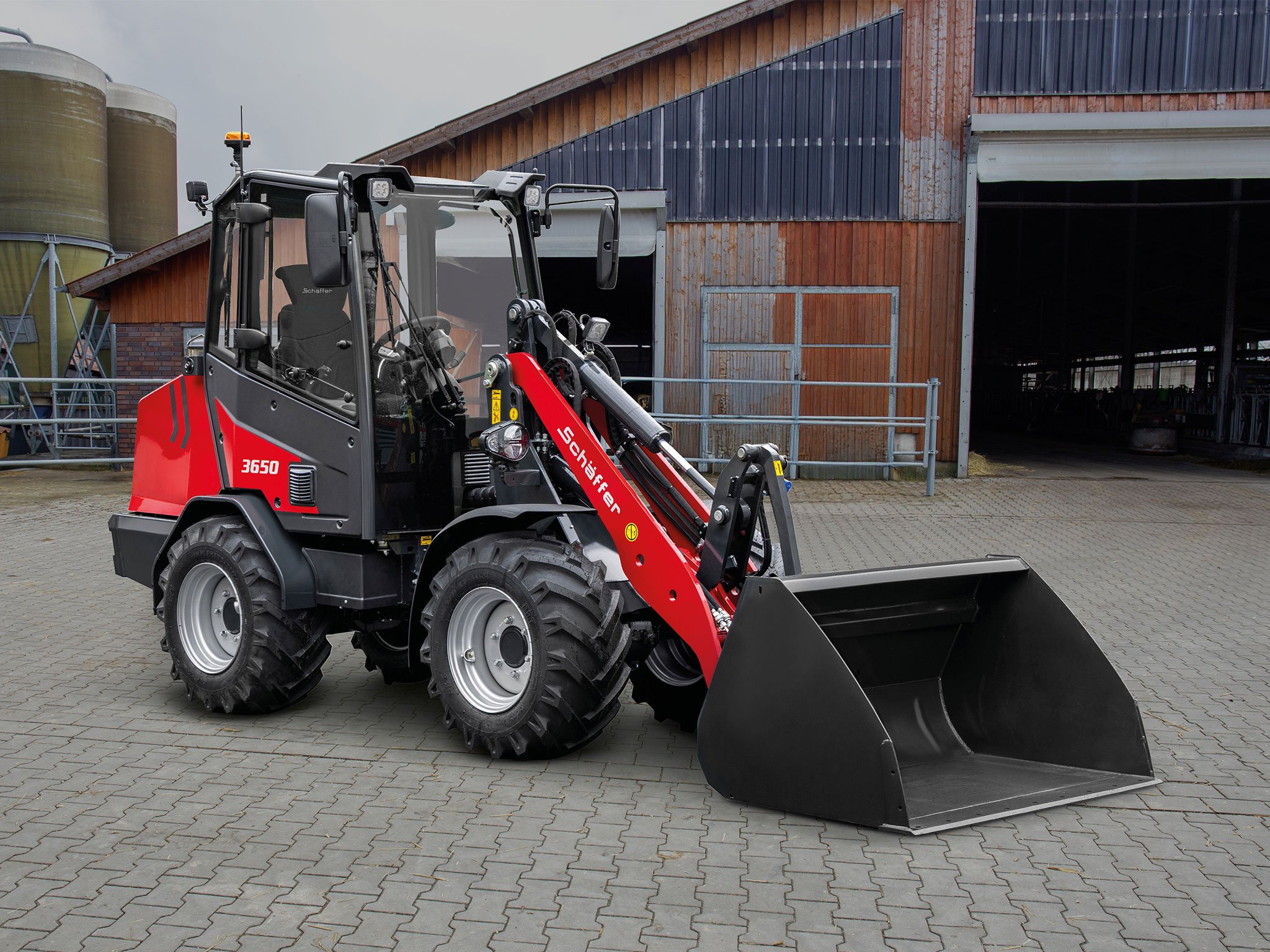

Compact loader 3650-2

Standard equipment compact loader 3650-2

Engine
- Type: 3-cylinder diesel engine Kubota D1803-CR(-T)
- Output: 37 kW (50 HP)
- Exhaust gas treatment / emission level: DOC, DPF / V
Tyres
- Standard tyres: 10.0/75-15.3 AS / MPT
- Option I: 31x15.5-15
- Option II: 15.0/55-17
- Option III: 11.5/80-15.3
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 1,800 mm
- (B) Chassis length: 3,485 mm
- (C) Overall length with standard bucket: 4,185 mm
- (D) Digging depth: 90 mm
- (G) Loading height with pallet fork / option: 2,810 / 3,060 mm
- (H) Max. dumping height / option: 2,140 / 2,390 mm
- (I) Front end height / option: 1,690 / 1,790 mm
- (J) Dumping width: 470 mm
- (K) Seat height: 1,226 mm
- (L) Protective roof height: 2,270 mm
- (L) Cab height: 2,270 mm
- (M) Max, bucket pivot point / option [mm]: 2,950 / 3,200 mm
- (N) Overall width: 1,200 - 1,570 mm
- (O) Inner turning radius: 1,180 mm
- (P) Outer turning radius: 2,380 mm
- (Q) Outer radius with standard bucket: 3,020 mm

Drive
- Traction hydraulics: Hydrostatic-automotive, HTF
- Speed / option: 0 - 20 kph in 2 gear switchable / 0 - 30 kph
- Axles / option: Original Schäffer axles, 6 wheel nut rim, automatic limited-slip differential
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated-swivel steering
Tank capacity
- Fuel: 50 l
- Hydraulic oil: 48 l

Working hydraulics
- Delivery rate / option: 46 l/min / 51 l/min / 51 + 46 l/min / 81 l/min
- Operat. pressure: 200 bar
Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 2,700 kg
- Operating weight cabin incl. Original tyres, driver and standard bucket: 2,850 kg
- Lifting capacity: 2,000 kg
- Tipping load, straight, pallet fork acc. to ISO 8313: 1,402 - 1,715 kg
- Tipping load, straight, bucket acc. to ISO 8313: 1,658 - 1,980 kg
- Tipping load, articulated, pallet fork acc. to ISO 8313: 1,080 kg
- Tipping load, articulated, bucket acc. to ISO 8313: 1,330 kg
- Payload, pallet fork, even ground acc. to EN 474-3: 864 kg
- Payload, pallet fork, uneven ground acc. to EN 474-3: 648 kg
- Payload bucket acc. to EN 14397-1: 665 kg
Sounds and vibration
- Sound pressure level LpA: 85 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 100 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²

Dimensions

Notice

Dimension	Diameter (mm) / Width (mm)	Rim offset	Loader width (mm)	Tread	Tread options
10.0/75-15.3	770 / 260	-40	1,200	AS	MPT
11.5/80-15.3	860 / 295	-40	1,210	AS
31x13.5-15	800 / 350	-70	1,320	MultiTrac
31x15.5-15	800 / 400	-70	1,370	AS	SKD, Allground
15.0/55-17*	860 / 390	45	(1,310)	AS
With wide axle
10.0/75-15.3	770 / 260	-5	1,370	AS	MPT
11.5/80-15.3	860 / 295	40	1,330	AS
11.5/80-15.3	860 / 295	-5	1,410	AS
31x15.5-15	800 / 400	45	1,390	AS	SKD, Allground
31x15.5-15	800 / 400	0	1,480	AS	SKD, Allground
31x13.5-15	800 / 350	-35	1,520 (1,380)	Multi Trac
15.0/55-17	860 / 390	45	1,400	AS
15.0/55-17	860 / 390	0	1,490	AS
15.0/55-17	860 / 390	-40	1,570	AS
