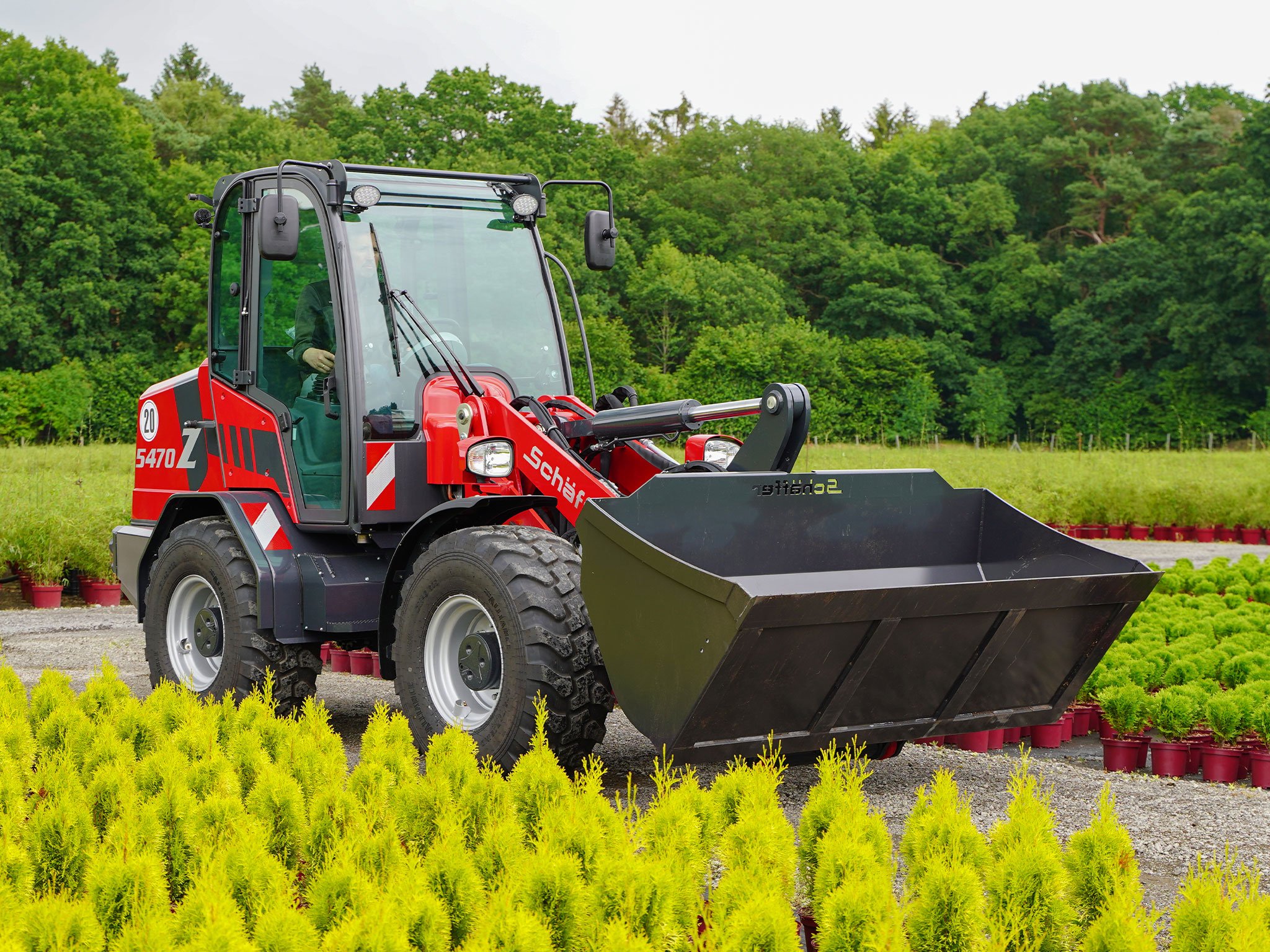

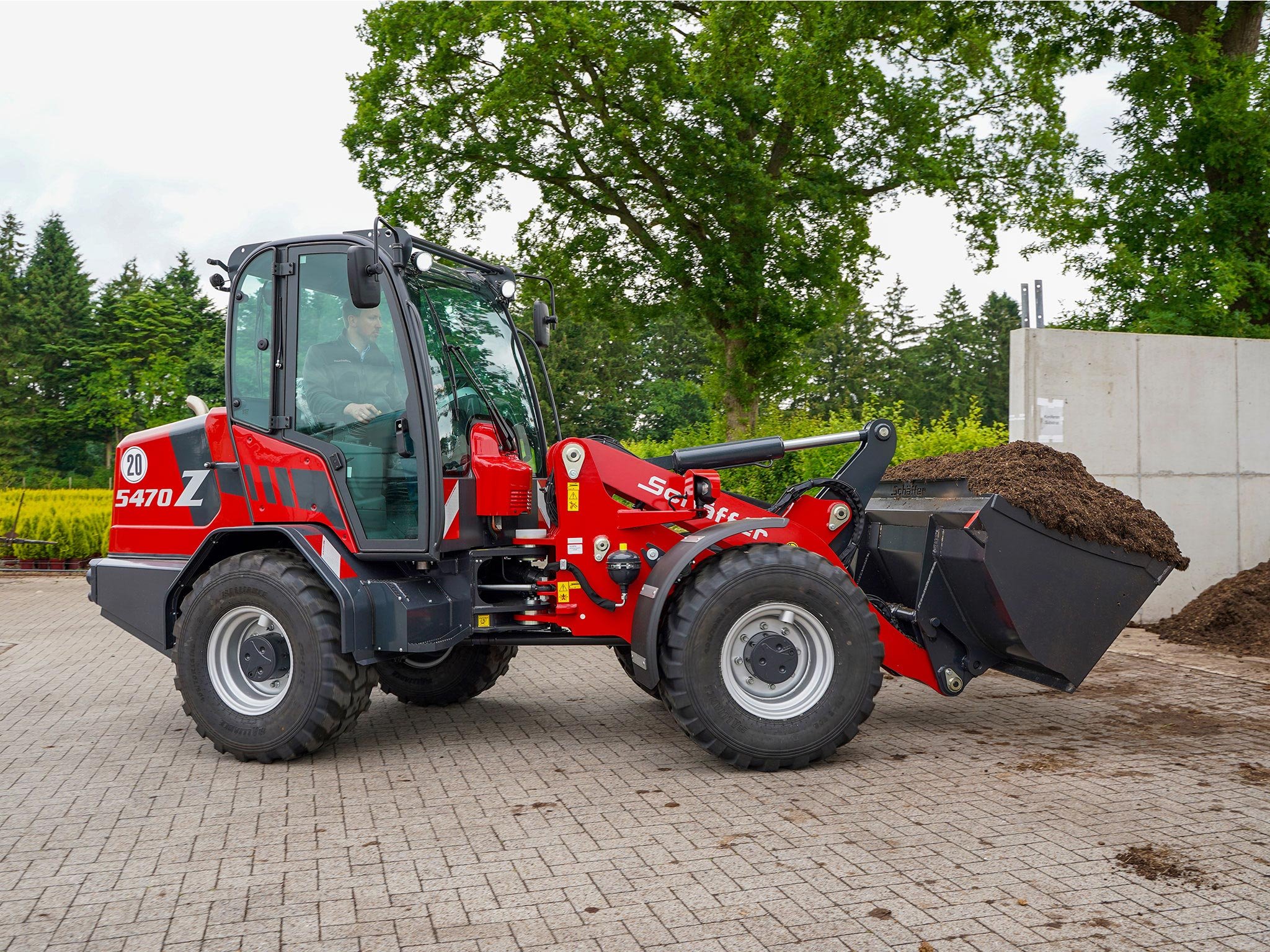

Wheel loader 5470 Z

Standard equipment wheel loader 5470 z

  • 4-cylinder diesel engine Deutz TD 2.9, 45 kW (61 HP) / 55 kW (75 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • High-pressure drive HD-plus
  • Tyres 400/70R18 A608, offset +40
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • ECO Mode
  • Hydraulic quick gear 20 km/h switchable under load
  • ZF planetary axles with self-locking differentials, 8 hole
  • Rear pendulum axle
  • Combined oil cooler
  • Hydraulic fan drive
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • LED working headlights: 2 x front, 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Additional control device electrically switchable on joystick
  • Working hydraulics standard / option: 64 / 76 l/min
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Armrest right hand side
  • Counter weight 380 kg mounted under rear chassis
  • Rear weight end plate and towing hitch
  • Main battery switch
  • 2-stage air cleaner with highly efficient pre-cleaner system
  • Driver-on-board switch
  • Headstock type wheel loader type VL 1
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Wheel loader 5470 Z

Find out more! Sit back and watch our product video.

Technical data wheel loader 5470 z

  • Engine
    • Type: 4-cylinder diesel engine Deutz TD 2.9
    • Capacity / option: 45 kW (61 HP) / 55 kW (75 HP)
    • Exhaust gas treatment / emission level: DOC, DPF / V
  • Tyres
    • Standard tyres: 400/70R18 A608, ET+40
    • Option I: 400/70R18 A608, ET0
  • Electric system
    • Operating voltage: 12 V
  • Sounds and vibration
    • Sound pressure level LpA: 76 db(A)
    • Sound power level guaranteed LwA: 101 db(A)
    • Sound power level equivalent LwA: 101 db(A)
    • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
    • Total body vibration acc. to ISO 8041: <0,5 m/s²
  • Drive
    • Traction hydraulics: Hydrostatic-automotive
    • Axles: ZF axles, 8 wheel nut rim, planetary axle and automatic limited slip brake, oscilating rear axle
    • Speed / option: 0 - 20 kph, 2 speeds gear switching under load possible / 0 - 30 kph
  • Brakes and steering
    • Service braking system: Combined brake hydrostatic and multi-disc brake
    • Parking brake: Multi-disc brake running in oil bath
    • Steering: Fully hydraulic articulated steering
  • Tank capacity
    • Fuel: 82 l
    • Hydraulic oil: 81 l
  • Dimensions
    • (A) Wheelbase: 2,050 mm
    • (B) Chassis length: 4,700 mm
    • (C) Overall length with standard bucket: 5,250 mm
    • (D) Digging depth: 80 mm
    • (E) Max. working height: 3,900 mm
    • (G) Loading height with pallet forks: 3,120 mm
    • (H) Max. dumping height: 2,500 mm
    • (I) Front end height: 1,530 mm
    • (J) Dumping width: 420 mm
    • (K) Seat height: 1,340 mm
    • (L) Cab height / option: 2,570 / 2,450 mm
    • (M) Max. bucket pivot point: 3,250 mm
    • (N) Overall width / option: 1,740 - 1,820 mm
    • (O) Inner turning radius: 1,560 mm
    • (P) Outer turning radius: 3,300 mm
    • (Q) Outer radius with standard bucket: 3,470 mm
  • Working hydraulics
    • Delivery rate / option: 64 l/min / 74 l/min
    • Operat. pressure: 210 bar
  • Weights
    • Operating weight cabin incl. Original tyres, driver and standard bucket: 5,220 kg
    • Lifting capacity: 3,600 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 2,660 kg
    • Tipping load, straight, bucket acc. to ISO 8313: 3,300 kg
    • Tipping load, articulated, pallet fork acc. to ISO 8313: 2,033 kg
    • Tipping load, articulated, bucket acc. to ISO 8313: 2,611 kg
    • Payload, pallet fork, even ground acc. to EN 474-3: 1,626 kg
    • Payload, pallet fork, uneven ground acc. to EN 474-3: 1,220 kg
    • Payload bucket acc. to EN 14397-1: 1,306 kg
  • Transport of materials
    • Specific material weight: 1,6 t/m³
    • Bucket volume acc. to ISO 8041: 0,80 m³
    • Recommended bucket width: 1,8 m
Dimensions wheel loaders
Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Tyres wheel loader 5470 z

Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm) Tread Tread options
400/70R18 1,025 / 400 40 1,740 MPT Bibload
400/70R18 1,025 / 400 0 1,820 A608 Bibload
