Wheel loader 2428-2

Technical data

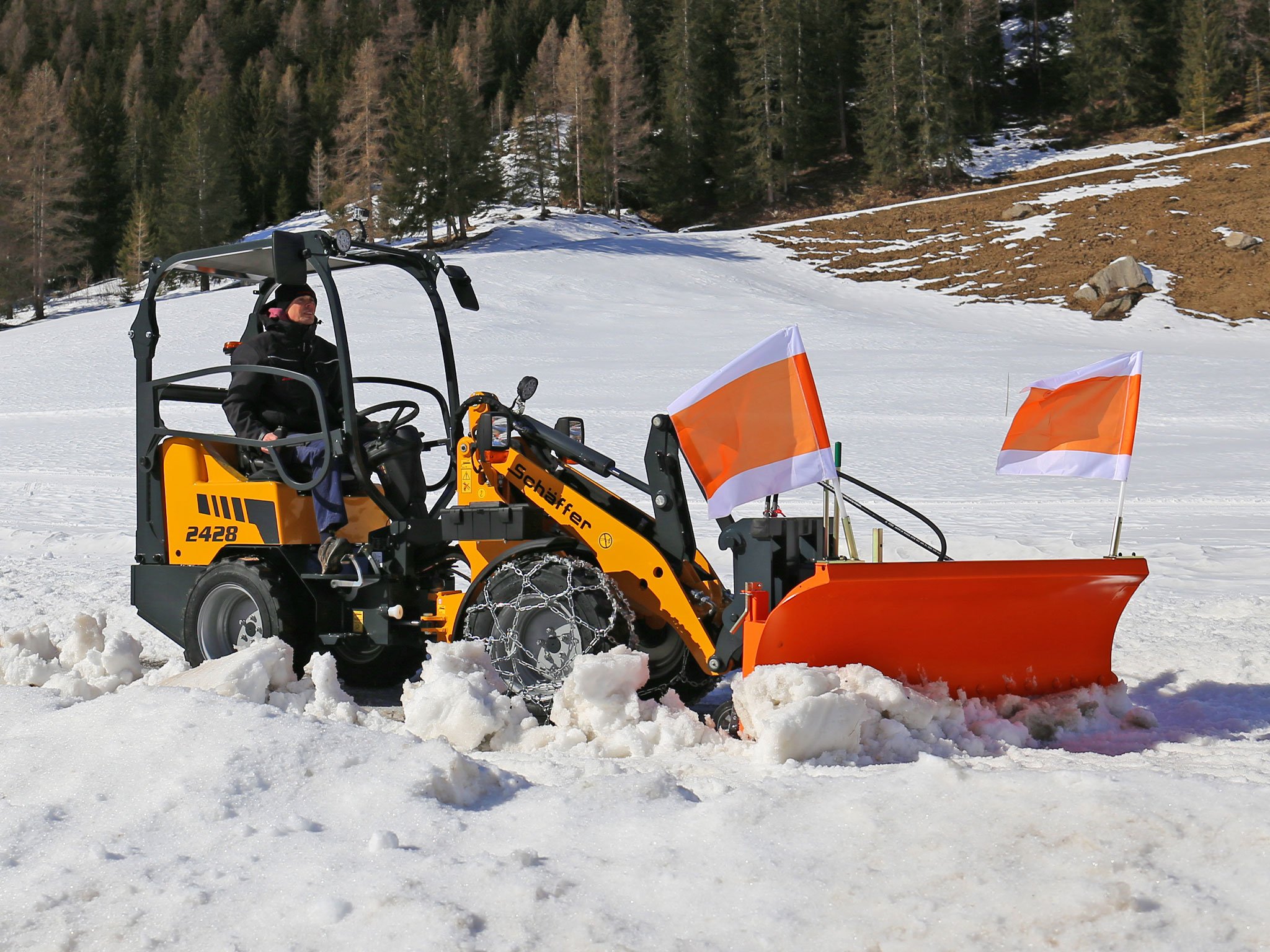

Wheel loader 2428-2 Image 1

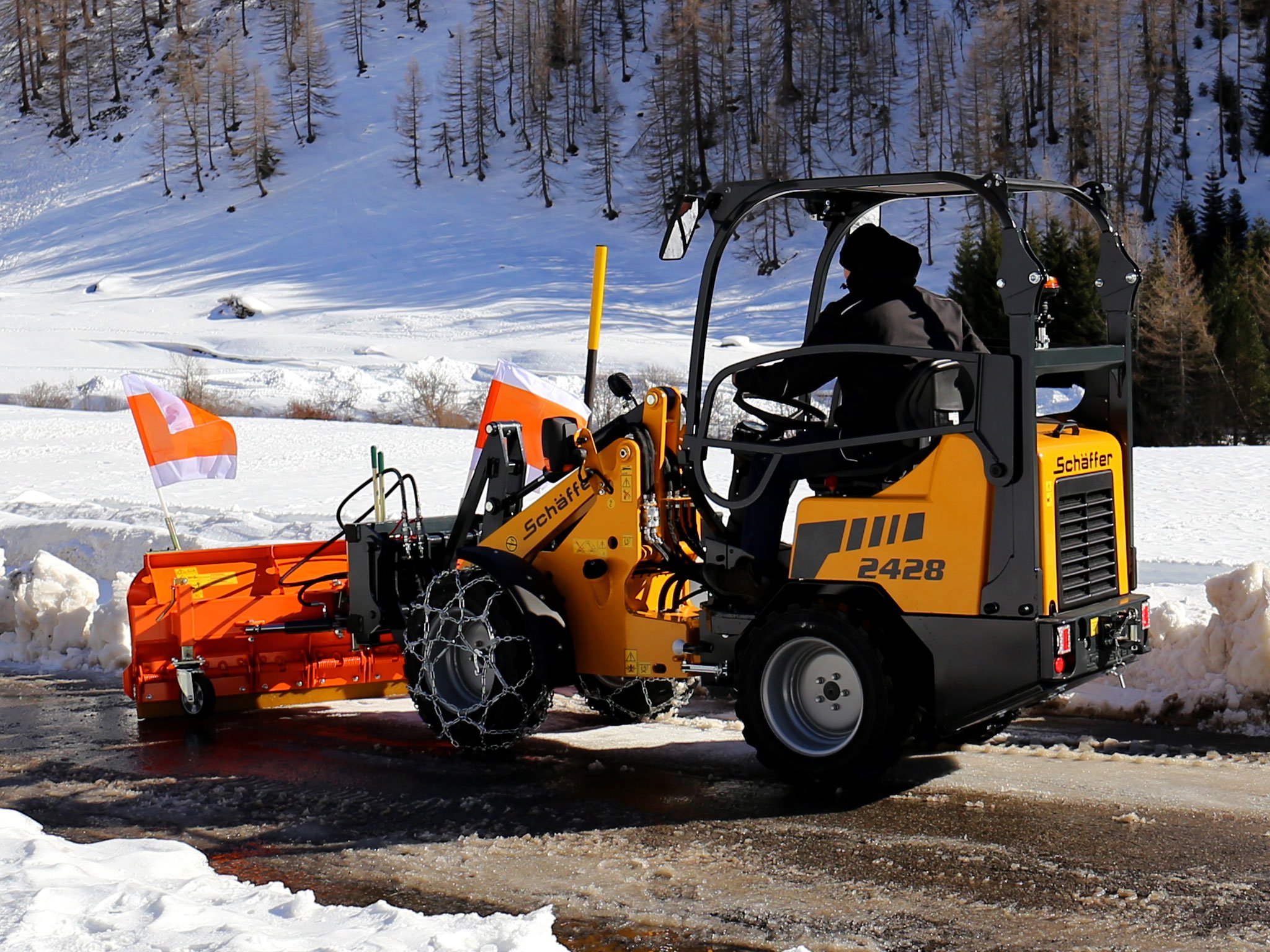

Wheel loader 2428-2 Image 2

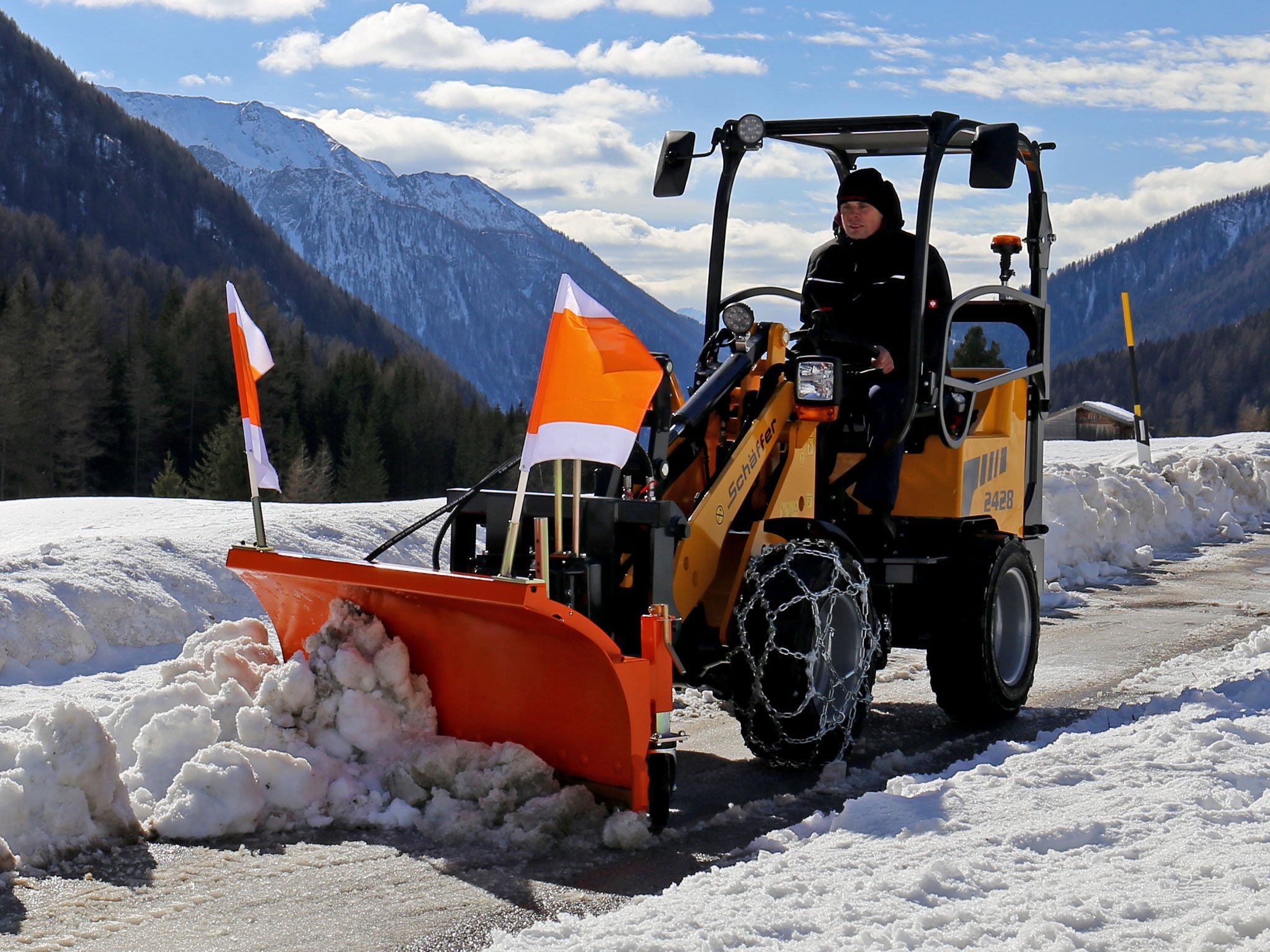

Wheel loader 2428-2 Image 3
Wheel loader 2428-2 Image 4

Standard equipment wheel loader 2428-2

  • 3-cylinder diesel engine Kubota D1105, 18.5 kW (25 HP)
  • Low version front carriage for best lifting force
  • Hydrostatic four wheel drive with automotive control
  • Tyres 27x8.50-15 SKD, offset +30 incl. reversable rims
  • SPT (Schäffer Power Transmission)
  • Genuine Schäffer axle, 5 hole
  • Combined oil cooler
  • Drum brake as service and parking brake
  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front on the boom
  • Parallel lift
  • Mechanically operated additional controller
  • Working hydraulics standard / option: 33 / 42 l/min
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Case weight
  • Rear weight end plate
  • Tool Box
  • Driver-on-board switch
  • Quick-change frame SWH with hydraulic tool lock

Technical data wheel loader 2428-2

  • Engine
    • Type: 3-cylinder diesel engine Kubota D1105
    • Output: 18.5 kW (25 HP)
    • Exhaust gas treatment / emission level: - / V
  • Tyres
    • Standard tyres: 27x8.50-15 SKD ET+30
    • Option I: 27x10.5-15 SKD, ET0
    • Option II: 26x12.00-12
  • Electric system
    • Operating voltage: 12 V
  • Sounds and vibration
    • Sound pressure level LpA: 84 db(A)
    • Sound power level guaranteed LwA: 101 db(A)
    • Sound power level equivalent LwA: 98 db(A)
    • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
    • Total body vibration acc. to ISO 8041: <0,5 m/s²
  • Drive
    • Traction hydraulics: Hydrostatic-automotive
    • Axles: Original Schäffer axles, 5-hole rim
    • Speed: 0 - 15 kph
  • Brakes and steering
    • Service braking system: Hydrostatic and mechanical drum brake
    • Parking brake: Mechanical drum brake
    • Steering: Fully hydraulic articulated/ swivel steering
  • Tank capacity
    • Fuel: 23 l
    • Hydraulic oil: 30 l
  • Dimensions
    • (A) Wheelbase: 1,530 mm
    • (B) Chassis length: 3,030 mm
    • (C) Overall length with standard bucket: 3,780 mm
    • (D) Digging depth: 110 mm
    • (E) Max. working height: 2,960 mm
    • (G) Loading height with pallet forks: 2,150 mm
    • (H) Max. dumping height: 1,450 mm
    • (I) Front end height: 1,360 mm
    • (J) Dumping width: 470 mm
    • (K) Seat height: 1,055 mm
    • (L) Protective roof height: 2,100 mm
    • (M) Max. bucket pivot point: 2,300 mm
    • (N) Overall width / option: 940 (1,080 turned) / 1,070 - 1,250 mm
    • (O) Inner turning radius: 860 mm
    • (P) Outer turning radius: 1,755 mm
    • (Q) Outer radius with standard bucket: 2,105 mm
  • Working hydraulics
    • Delivery rate / option: 33 l/min / 42 l/min
    • Operat. pressure: 200 bar
  • Weights
    • Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,820 kg
    • Lifting capacity: 1,700 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 1,046 - 1,222 kg
    • Tipping load, straight, bucket acc. to ISO 8313: 1,218 - 1,354 kg
    • Tipping load, articulated, pallet fork acc. to ISO 8313: 850 kg
    • Tipping load, articulated, bucket acc. to ISO 8313: 1,020 kg
    • Payload, pallet fork, even ground acc. to EN 474-3: 680 kg
    • Payload, pallet fork, uneven ground acc. to EN 474-3: 510 kg
    • Payload bucket acc. to EN 14397-1: 510 kg
  • Transport of materials
    • Specific material weight: 1,6 t/m³
    • Bucket volume acc. to ISO 8041: 0,32 m³
    • Recommended bucket width: 0,8 m
Dimensions
Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Tyres wheel loader 2428-2

Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm)* Tread Tread options
27x8.50-15 690 / 220 30 940 (1,080) SKD
27x10.50-15 690 / 270 0 1,070 SKD
26x12.00-12 670 / 310 -70 1,250 SKD AS, Multi Trac, Allground
26x12.00-12 670 / 310 -5 1,100 SKD AS, Multi Trac, Allground
