Compact loader 2028-2

Standard equipment compact loader 2028-2

  • 3-cylinder diesel engine Kubota D1105, 18.5 kW (25 HP)
  • Hydrostatic four wheel drive with automotive control
  • Tyres 7.00-12 AS, offset +40 incl. reversable rims
  • SPT (Schäffer Power Transmission)
  • Genuine Schäffer axle, 5 hole
  • Combined oil cooler
  • Drum brake as service and parking brake

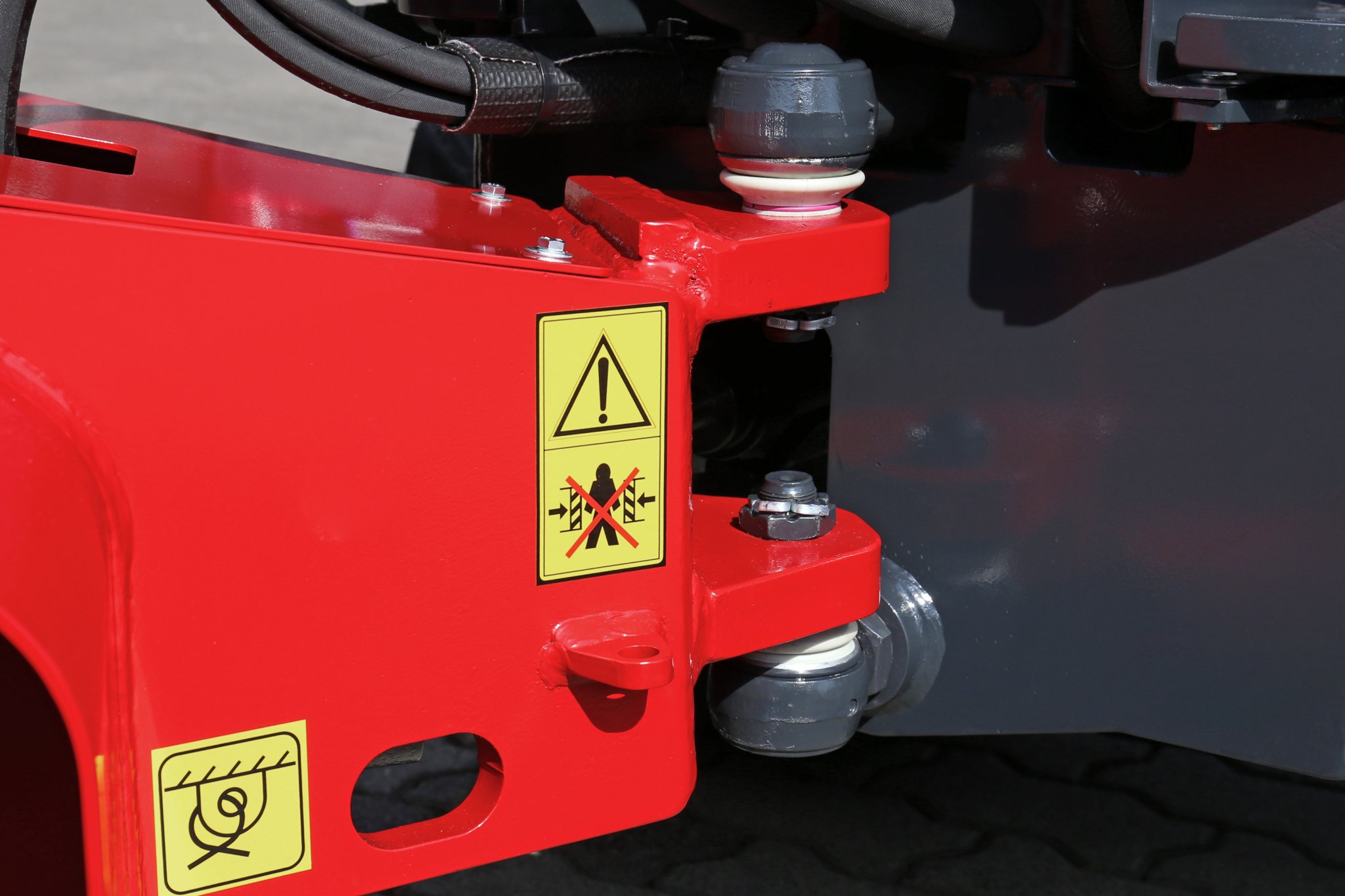

  • Maintenance free articulated pendulum joint
  • Restraining system for protection roof
  • 1 x LED working headlight front on the boom
  • Parallel lift
  • Mechanically operated additional controller
  • Working hydraulics standard / option: 33 / 42 l/min
  • Adjustable steering column
  • Hour meter, fuel control lamp and temperature indicator
  • Rear weight end plate
  • Driver-on-board switch
  • Quick-change frame SWH with hydraulic tool lock
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Compact loader 2028-2

Find out more! Sit back and watch our product video.

Technical data compact loader 2028-2

  • Engine
    • Type: 3-cylinder diesel engine Kubota D1105
    • Output: 18.5 kW (25 HP)
    • Exhaust gas treatment / emission level: - / V
  • Tyres
    • Standard tyres: 7.00-12 AS
    • Option I: 27x8.50-15
    • Option II: 27x10.5-15
    • Option III: 26x12.00-12
  • Electric system
    • Operating voltage: 12 V
  • Sounds and vibration
    • Sound pressure level LpA: 83 db(A)
    • Sound power level guaranteed LwA: 101 db(A)
    • Sound power level equivalent LwA: 98 db(A)
    • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
    • Total body vibration acc. to ISO 8041: <0,5 m/s²
  • Drive
    • Traction hydraulics: Hydrostatic-automotiv
    • Axles: Original Schäffer axles, 5 wheel nut rim
    • Speed: 0 - 15 kph
  • Brakes and steering
    • Service braking system: Hydrostatic mechanical drum brake
    • Parking brake: Mechanical drum brake
    • Steering: Fully hydraulic articulated-swivel steering
  • Tank capacity
    • Fuel: 23 l
    • Hydraulic oil: 30 l
  • Dimensions
    • (A) Wheelbase: 1,405 mm
    • (B) Chassis length: 2,850 mm
    • (C) Overall length with standard bucket: 3,560 mm
    • (D) Digging depth: 110 mm
    • (G) Loading height with pallet fork / option: 2,560 / 2,920 mm
    • (H) Max. dumping height / option: 1,965 / 2,265 mm
    • (I) Front end height: 1,600 / 1,725 mm
    • (J) Dumping width: 440 mm
    • (K) Seat height: 1,055 mm
    • (L) Protective roof height: 2,100 mm
    • (M) Max, bucket pivot point / option [mm]: 2,800 / 3,060 mm
    • (N) Overall width / option: 905 (1,065 turned) / 940 - 1,250 mm
    • (O) Inner turning radius: 820 mm
    • (P) Outer turning radius: 1,1715 mm
    • (Q) Outer radius with standard bucket: 2,105 mm
  • Working hydraulics
    • Delivery rate / option: 33 l/min / 42 l/min
    • Operat. pressure: 200 bar
  • Weights
    • Operating weight protective roof incl. Original tyres, driver and standard bucket: 1,760 kg
    • Lifting capacity: 1,500 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 675 - 841 kg
    • Tipping load, straight, bucket acc. to ISO 8313: 832 - 976 kg
    • Tipping load, articulated, pallet fork acc. to ISO 8313: 375 kg
    • Tipping load, articulated, bucket acc. to ISO 8313: 505 kg
    • Payload, pallet fork, even ground acc. to EN 474-3: 300 kg
    • Payload, pallet fork, uneven ground acc. to EN 474-3: 225 kg
    • Payload bucket acc. to EN 14397-1: 252,5 kg
  • Transport of materials
    • Specific material weight: 1,6 t/m³
    • Bucket volume acc. to ISO 8041: 0,2 m³
    • Recommended bucket width: 0,9 m
Dimensions
Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Tyres compact loader 2028-2

Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm)* Tread Tread options
7.00-12 660 / 185 40 905 (1,065) AS
27x8.50-15 690 / 220 30 940 (1,080) SKD
27x10.50-15 690 / 270 0 1,070 SKD
26x12.00-12 670 / 310 -5 1,110 AS SKD, Multi Trac
26x12.00-12 670 / 310 -70 1,250 AS SKD, Multi Trac
