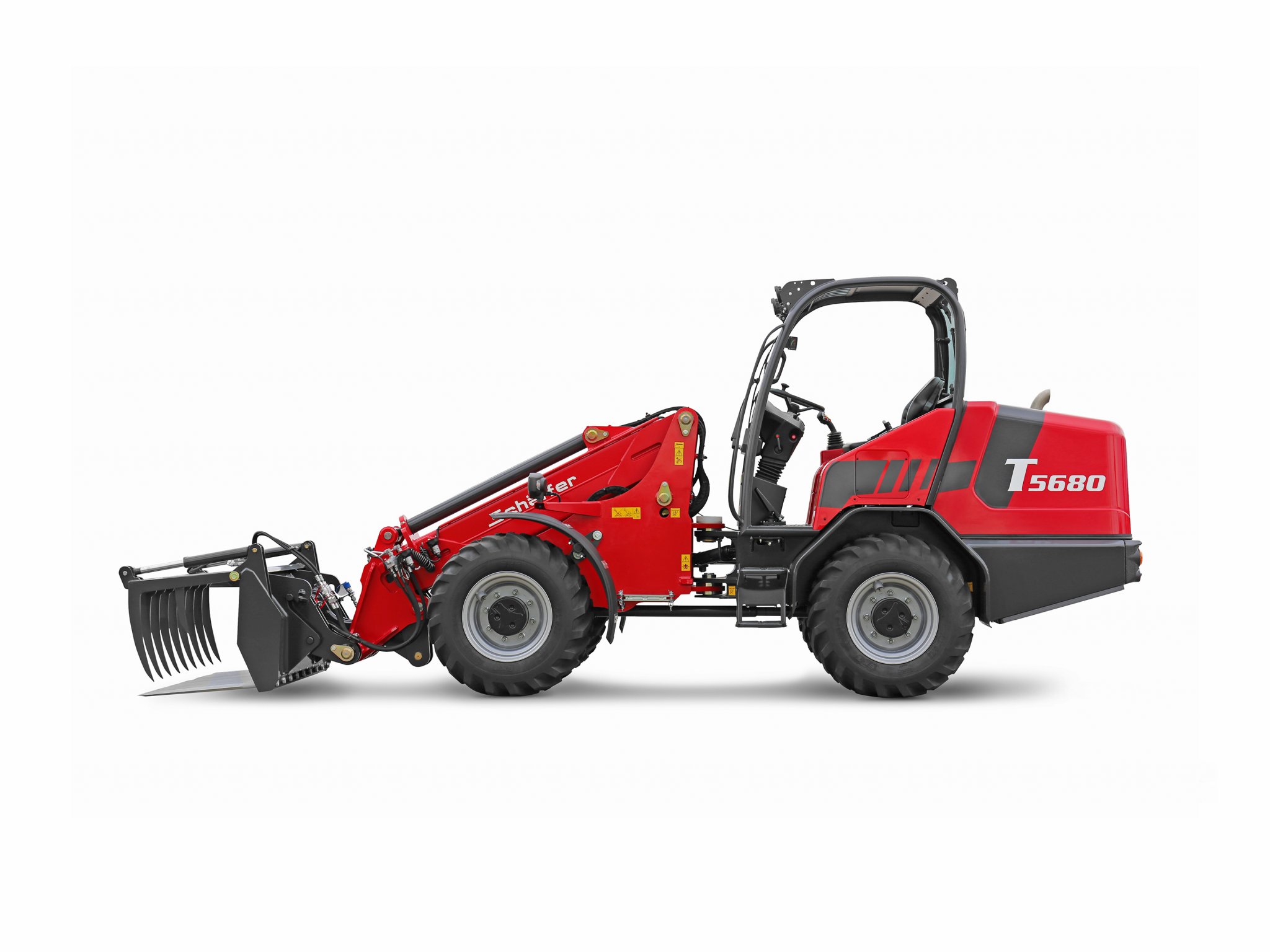

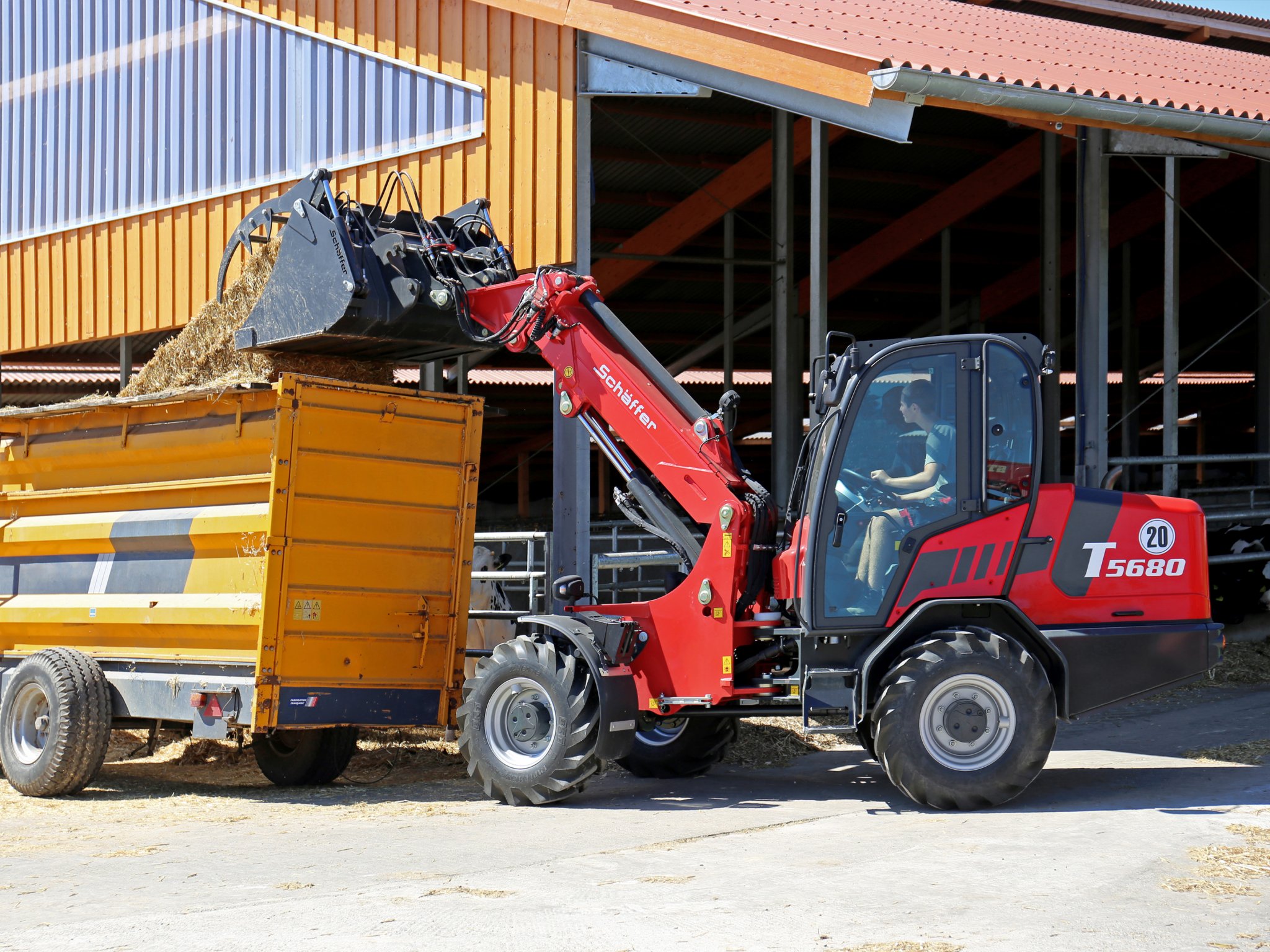

Telescopic wheel loader 5680 T

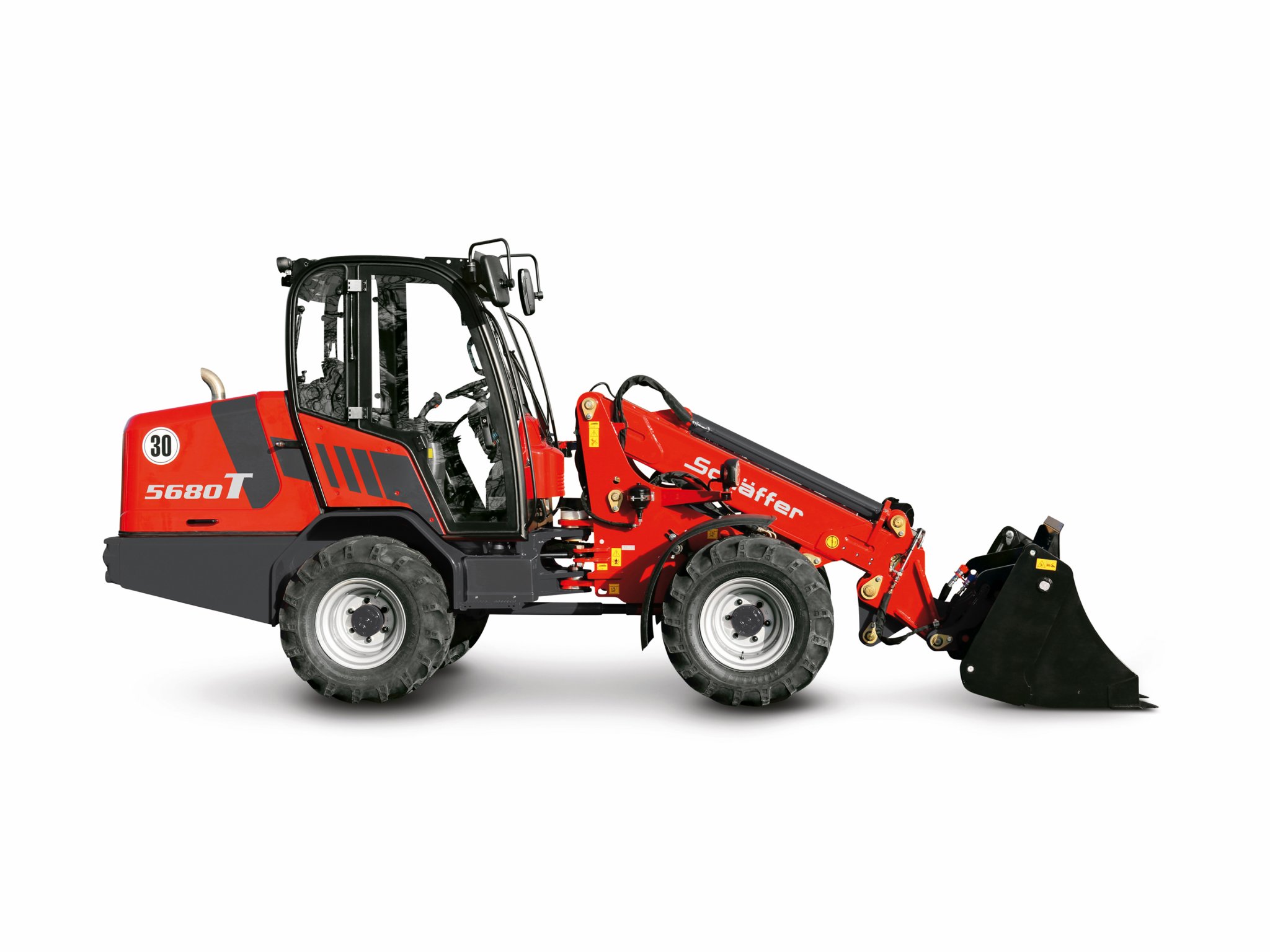

Standard equipment telescopic wheel loader 5680 t

  • 4-cylinder diesel engine Deutz TD 2.9, 55 kW (75 HP)
  • DOC and DPF for compliance with Stage V emissions standards
  • Hydrostatic four wheel drive with automotive control
  • High-pressure drive HD-plus
  • Tyres 15.5/60-18 AT-621, offset +40
  • HTF (High Traction Force)
  • SPT (Schäffer Power Transmission)
  • ECO Mode
  • Hydraulic quick gear 20 km/h switchable under load
  • HD planetary axles with self-locking differentials, 8 hole
  • Rear pendulum axle
  • Ferro-form sliding elements in the telescopic arm
  • Tool cylinder in the telescopic arm
  • Electric pressure relief of hydraulic couplings
  • Combined oil cooler
  • Hydraulic fan drive
  • Multiple disk brake, maintenance free; service and parking brake
  • Maintenance free articulation joint
  • LED working headlights: 2 x front, 1 x rear
  • Lighting system without ABE (General approval certificate) according to ordinance StVZO
  • Z-bar boom with parallel lift
  • Additional control device electrically switchable on joystick
  • Working hydraulics standard / option: 64 / 76 l/min
  • Depressurised return
  • Adjustable steering column
  • Hour meter, rev, counter, fuel control lamp and temperature indicator
  • Armrest right hand side
  • Rear weight end plate and towing hitch
  • Counter weight 224 kg mounted under rear chassis
  • Main battery switch
  • 2-stage air cleaner with highly efficient pre-cleaner system
  • Driver-on-board switch
  • Headstock type wheel loader with hydraulic tool lock

Technical data telescopic wheel loader 5680 t

  • Engine
    • Type: 4-cylinder diesel engine Deutz TD 2.9
    • Output: 55 kW (75 HP)
    • Exhaust gas treatment / emission level: DOC, DPF / V
  • Tyres
    • Standard tyres: 15.5/60-18 AT-621, ET+40
    • Option I: 12.5/80-18 AS, ET0
    • Option II: 425/55-17 AS (A331), ET-50
  • Electric system
    • Operating voltage: 12 V
  • Dimensions
    • (A) Wheelbase: 2,120 mm
    • (B) Chassis length: 4,691 mm
    • (C) Overall length with standard bucket: 5,432 mm
    • (D) Digging depth: 180 mm
    • (E) Reach: 2,480 mm
    • (F) Swivelling point, telescopic arm retracted: 3,750 mm
    • (G) Loading height with pallet forks: 4,499 mm
    • (H) Max. dumping height: 3,862 mm
    • (I) Front end height: 1,730 mm
    • (J) Dumping width: 963 mm
    • (K) Seat height: 1,330 mm
    • (L) Protective roof height: 2,410 mm
    • (L) Cab height / option: 2,530 mm / from 2,410 mm
    • (M) Max. bucket pivot point: 4,740 mm
    • (N) Overall width / option: 1,740 / 1,720 - 1,820 mm
    • (O) Inner turning radius: 1,740 mm
    • (P) Outer turning radius: 3,460 mm
    • (Q) Outer radius with standard bucket: 3,980 mm
  • Drive
    • Traction hydraulics: Hydrostatic-automotive
    • Axles: Original Schäffer axles, 6-hole rim / automatic slipcontrol differential
    • Speed / option: 0 - 20 kph in 2 gears switchable under load / 0 - 28 kph
  • Brakes and steering
    • Service braking system: Combined brake hydrostatic and multi-disc brake
    • Parking brake: Multi-disc brake running in oil bath
    • Steering: Fully hydraulic articulated pendulum steering
  • Tank capacity
    • Fuel: 82 l
    • Hydraulic oil: 81 l
  • Working hydraulics
    • Delivery rate / option: 64 l/min / 76 l/min
    • Operat. pressure: 220 bar
  • Weights
    • Operating weight protective roof incl. Original tyres, driver and standard bucket: 4,640 kg
    • Operating weight cabin incl. Original tyres, driver and standard bucket: 4,840 kg
    • Lifting capacity: 2,400 kg
    • Tipping load, straight, pallet fork acc. to ISO 8313: 2,660 kg
  • Sounds and vibration
    • Sound pressure level LpA: 76 db(A)
    • Sound power level guaranteed LwA: 101 db(A)
    • Sound power level equivalent LwA: 101 db(A)
    • Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
    • Total body vibration acc. to ISO 8041: <0,5 m/s²
Dimensions telescopic wheel loaders
Payload chart 5680 T
Using forks on stable underground (according EN 474-3)
Notice
All specifications are subject to change. Optional equipment and tyre dimensions may vary operating weight and tipping loads. The Euro type headstock and foreign attachments may have a negative impact on tipping load and parallel lift. Images may contain products or equipment components which are not mentioned or cannot be obtained as a standard. Maximum values for tipping loads and payloads can only be reached with additional ballasting.

Tyres telescopic wheel loader 5680 t

Dimension Diameter (mm) / Width (mm) Rim offset Loader width (mm) Tread Tread options
12.5/80-18 990 / 310 0 1,730 AS MPT
15.5/60-18 950 / 440 40 1,740 AT-621
15.5/55-18* 900 / 400 50 1,720 A601
425/55-17* 900 / 425 50 1,745 AS
500/45-20 980 / 500 50 1,820 AS
400/70R-18 1.025 / 400 40 1,740 MPT A608 AS TH400
